Triathlon Roller Shades - Exposed Headrail, 12V Wired

"Pro-installed roller shades for any window, with 12V wiring and exposed headrail for custom top treatments."


Width & Height Range: 19.5"-144" wide x 24"-144" high—varies by fabric
Intelligent Hembar Alignment: Maintains alignment within 1/8" across all shades
Sound Level: Operates at less than 38 dBA at 3ft
Power: 12V low-voltage wiring
Communication: ClearConnect RF wireless technology
Fabric Options: Hundreds of designer fabrics available

Configure

Select Top Treatment
Select Power Options

Product Details

Overview
Overview

Triathlon roller shades with exposed headrail deliver reliable motorized operation for windows from 19.5 to 144 inches wide and 24 to 144 inches high, with a slim-profile headrail designed to be concealed behind custom valances or architectural details. This flexible configuration enables designers to create site-specific top treatments that complement unique architectural visions, delivering professional-grade motorization and minimal light gaps as small as 7/16 inch. For configurations where wider spans could cause fabric deflection, Width Integrated Deflection Reduction (WIDR) technology uses tubes with larger and stronger cross-sections to reduce sagging and rippling in wider shades, with the Lutron Quoting and Ordering Tool precisely calculating when WIDR is required. These shades operate at less than 38 dBA at 3 feet and incorporate Intelligent Hembar Alignment technology that monitors shade speed hundreds of times per second to synchronize shade positioning within 1/8 inch during motion and at all resting positions. The 12V low-voltage system provides continuous power while ClearConnect RF technology enables native wireless control through Lutron systems and integrates with major smart home platforms including Amazon Alexa and Google Assistant. Backed by an 8-year limited warranty and compatible with most Lutron control systems, Triathlon shades unlock Natural Light Optimization technology when paired with RadioRA 3, HomeWorks, and Athena systems, tracking the sun's movement throughout the day to automatically adjust shade positions and manage glare and heat gain while preserving views and daylight.

Highlights
  • Accommodates windows from 19.5 to 144 inches wide and 24 to 144 inches high for versatile installations, with precise sizing dependent on fabric choice and mounting requirements
  • Patented Intelligent Hembar Alignment technology monitors shade speed hundreds of times per second to maintain alignment within 1/8 inch across all shades

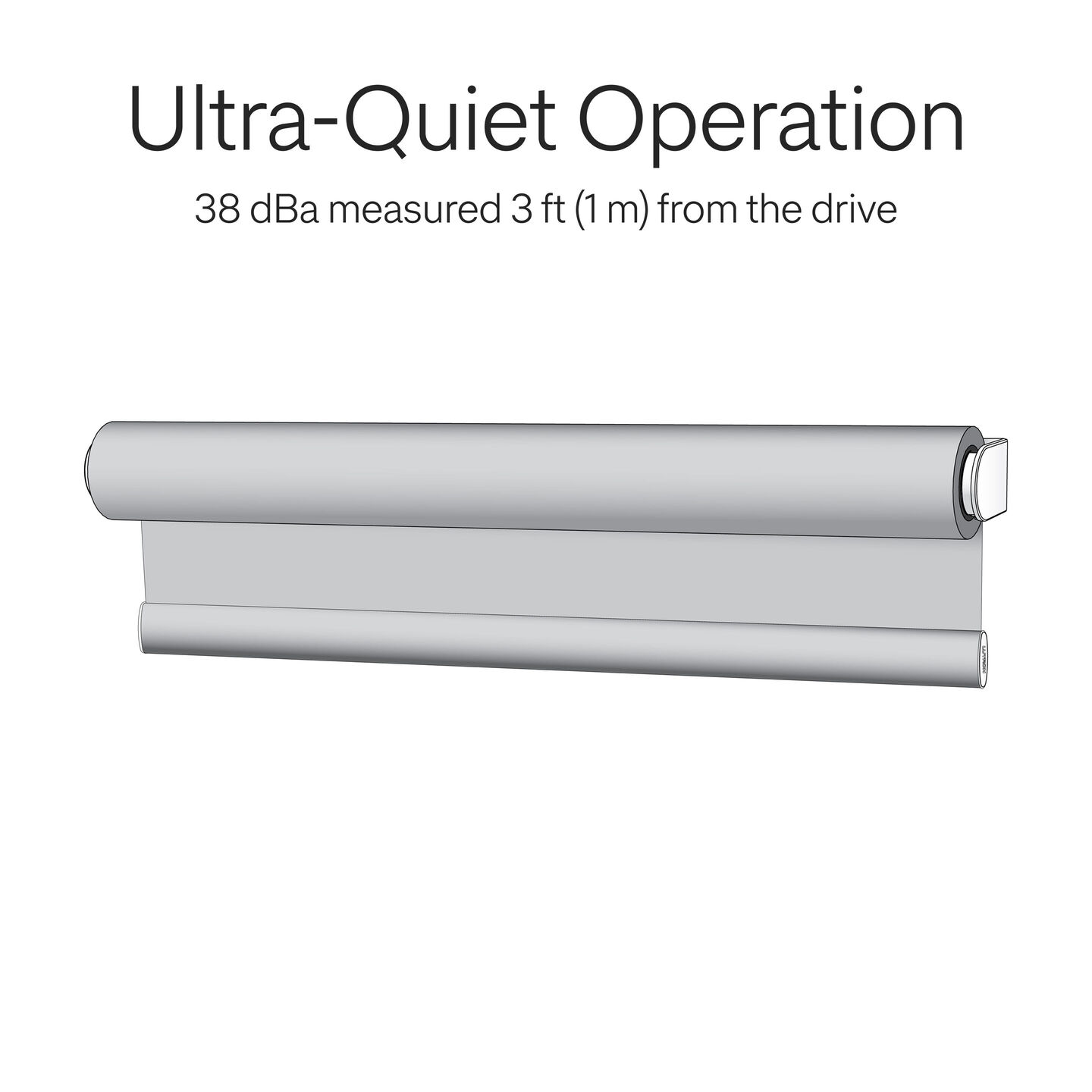

  • Ultra-quiet operation below 38 dBA measured 3 feet away creates peaceful environments
  • 12V low-voltage wiring provides continuous power without the need for battery replacement
  • ClearConnect RF technology enables native wireless control with RadioRA 3, HomeWorks, Caséta PRO, and RA2 Select systems, with additional compatibility for Amazon Alexa, Google Assistant, and other major smart home platforms
  • Choose from hundreds of fabric options with varied colors, textures, and openness factors for complete customization
  • Width Integrated Deflection Reduction tube option uses a larger, stronger cross-section to reduce deflection in wide shades, enabling single-panel coverage in select cases and eliminating light gaps between multiple shades.

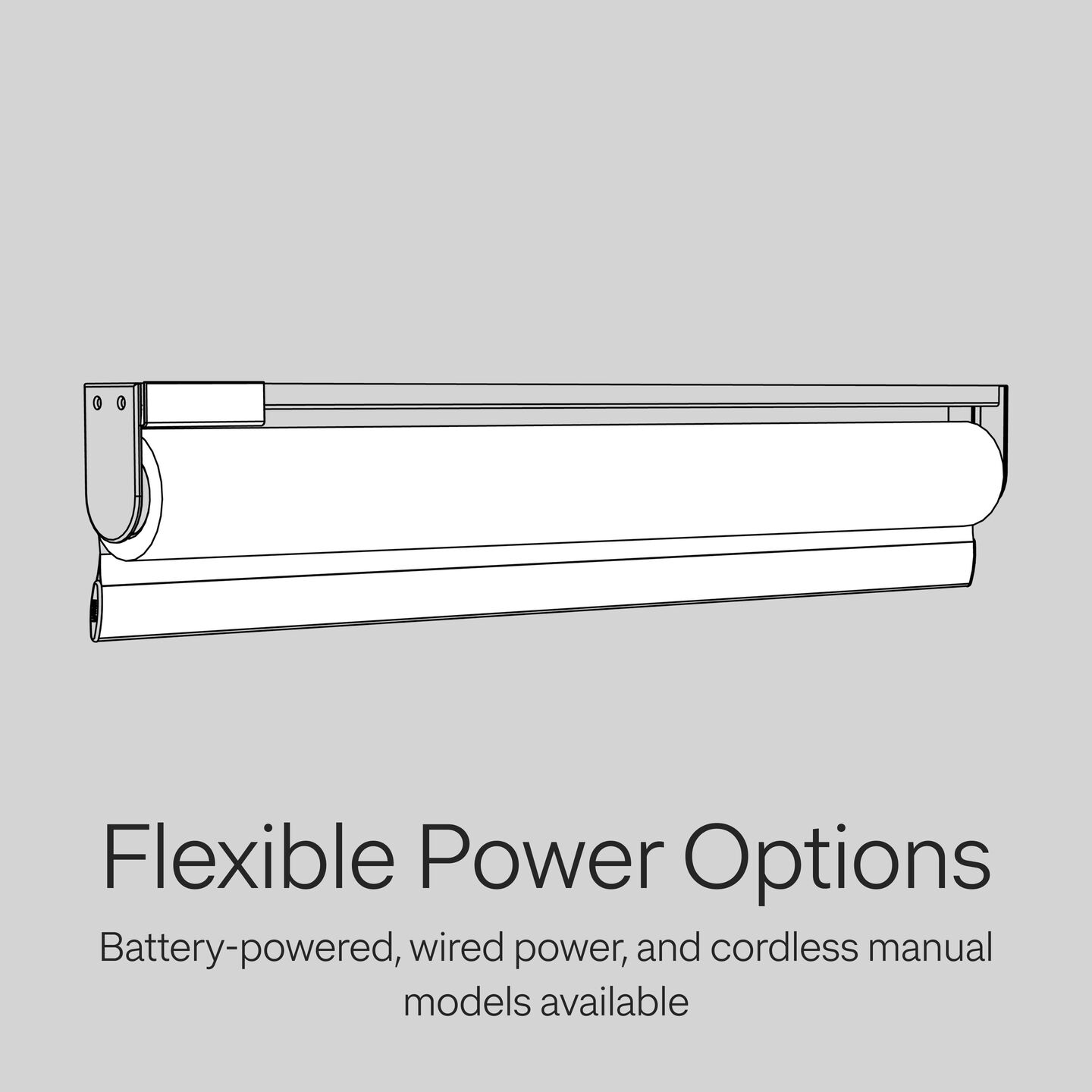

Power Source

Low voltage 12V wired power supply required (Individual plug-in power supply or centralized power panel options available)

Minimum Width & Maximum Width

Accommodates windows from 19.5 to 144 inches wide and 24 to 144 inches high for versatile installations, with precise sizing dependent on fabric choice and mounting requirements

Dimensions
Triathlon Roller Shades - Exposed Headrail, 12V Wired - Dimensions
Mounting & Installation Highlights
  • The shade system must be mounted to blocking or other suitable structural material.
  • Depending on window dimensions, brackets can be mounted inside or outside the window frame.
  • Shades can be regular or reverse roll.
Specifications & Documents
General Specifications

Overall Dimensions

19.5"-144" wide x 24"-144" high—varies by fabric

Power Options

Plug-in power supply 10-output power supply

Control Communication

Integrated wireless control using ClearConnect Type A RF technology (30 ft wireless control range)

Performance Specifications & Features

Sound Level

Operates at less than 38 dBA at 3ft

Speed

Bottom bar speed: 3.6 in/sec

Precision Control

Intelligent Hembar Alignment (IHA): Shades remain within 1⁄8 in (3 mm) alignment when in motion or stopped

Coupling

No

Natural Light Optimization

Yes, available with HomeWorks, RadioRA 3, Caseta, Athena

Design Specifications

Fabric Options

Sheer, Translucent, Blackout

Fabric Collections

The Classico Collection, The Gallery Collection, The Atelier Collection, The Commercial Collection

Mounting Options

Wall or Ceiling

Hembar Options

Designer Bottom Bar, Sealed Bottom Bar, Half-wrap Architectural Bottom Bar

Certifications Specifications

Environmental Rating

Temperature: 32 F to 104˚ F (0 C to 40˚ C). For indoor use only. Relative Humidity: < 90% non-condensing.

Fabric Standards / Certification Options Available

PVC Free, Fire Rated, Anti-microbial Properties, GREENGUARD Certified, RoHS Compliant, Cradle to Cradle Certified, Lead Free

Environmental Standards / Certifications

Lutron shading solutions and controls can contribute to achieving certifications such as LEED, WELL, and BREEAM.

Regulatory Approvals

cULus listed (E135084) FCC (USA) IC (Canada) CFT (Mexico) CE Mark (European Union) FCC Certified (Hong Kong) UKCA (United Kingdom) NCC (Taiwan) TRA (United Arab Emirates)

Warranty

Eight Year Limited Warranty
