Triathlon Select Roller Shades

Pro-installed, wire-free smart shades with an open-roll design, fixed price quoting, and 15-minute installation.


Width & Height Range: 22"-108" wide x 12"-120" high—varies by fabric
Intelligent Hembar Alignment: Maintains alignment within 1/8" across all shades
Sound Level: Operates at less than 44 dBA at 3ft
Power: D-cell battery (2 year life)
Communication: ClearConnect RF wireless technology
Fabric Options: 600+ Lutron designer fabrics available

Configure

Select Top Treatment
Select Power Options

Product Details

Overview
Overview

Triathlon Select roller shades simplify smart shade adoption with fixed pricing for standard sizes up to 48 by 80 inches and efficient professional installation in as little as 15 minutes, delivering motorized control for windows from 22 to 108 inches wide and 12 to 120 inches high. Simplified by design, the open-roll construction provides a streamlined aesthetic, with D-cell batteries providing 2 years of reliable wire-free operation. The included Precision Measuring Tool extends to measure exact shade width and marks bracket locations to help ensure accurate placement and professional results. These shades operate at less than 44 dBA at 3 feet and incorporate Intelligent Hembar Alignment technology to maintain near-perfect synchronization when multiple shades are paired, with seven bracket and hembar endcap color options to complement any décor. Built-in ClearConnect RF technology enables control via Pico remotes or integration with Caséta, RadioRA 3, and HomeWorks systems, unlocking voice control through Amazon Alexa and Google Assistant plus automated scheduling. Backed by an 8-year limited warranty and compatible with most Lutron control systems, Triathlon Select shades unlock Natural Light Optimization technology when paired with RadioRA 3 and HomeWorks systems, tracking the sun's movement throughout the day to automatically adjust shade positions and manage glare and heat gain while preserving views and daylight.

Highlights
  • Accommodates windows from 22 to 108 inches wide and 12 to 120 inches high, with fixed pricing for sizes up to 48 by 80 inches
  • Patented Intelligent Hembar Alignment technology ensures near-perfect synchronization across multiple shades
  • Quiet operation below 44 dBA measured 3 feet away
  • D-cell batteries provide 2 years of operation with simple replacement
  • Compatible with Caséta, RadioRA 3, and HomeWorks systems plus Amazon Alexa and Google Assistant for voice control

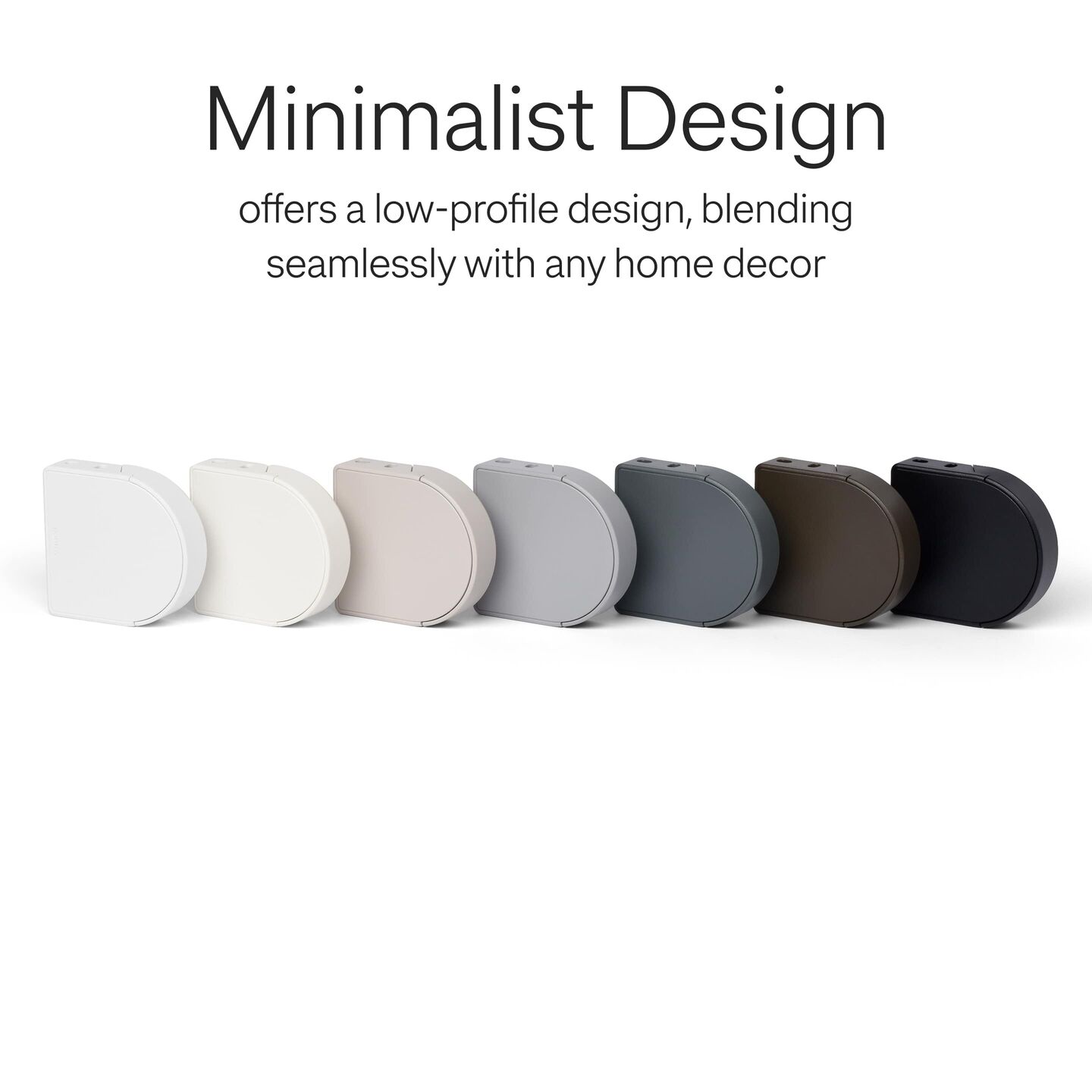

  • Choose from 600+ Lutron fabrics with seven bracket and hembar endcap color options for complete customization
  • Precision Measuring Tool included for accurate bracket placement, enabling professional installation in just 15 minutes
Power Source

Powered by up to five D-Cell, 1.5 V, alkaline batteries (not included)

Minimum Width & Maximum Width

Accommodates windows from 22 to 108 inches wide and 12 to 120 inches high, with fixed pricing for sizes up to 48 by 80 inches

Dimensions
Triathlon Select Roller Shades - Dimensions
Mounting & Installation Highlights
  • The shade system must be mounted to blocking or other suitable structural material.
  • Depending on window dimensions, brackets can be mounted inside or outside the window frame.
  • Battery access can be on the left or right side of the shade.
  • Shades can be regular or reverse roll.
Specifications & Documents
General Specifications

Overall Dimensions

22"-108" wide x 12"-120" high—varies by fabric

Power Options

Battery (2 year typical battery life with up to 5 D-Cell alkaline batteries)

Control Communication

Integrated wireless control using ClearConnect Type A RF technology (30 ft wireless control range)

Performance Specifications & Features

Sound Level

Operates at less than 44 dBA at 3ft

Speed

Bottom bar speed: 2.5 in/sec

Coupling

No

Natural Light Optimization

Yes, available with HomeWorks and RadioRA 3 and Athena Shade Automation Software for Athena.

Design Specifications

Fabric Options

Sheer, Translucent, Blackout

Fabric Collections

The Classico Collection, The Gallery Collection, The Atelier Collection, The Commercial Collection

Mounting Options

Wall, Ceiling, or Jamb

Finishes

Biscuit, Black, Bronze, Grey, Slate Grey, Taupe, White

Certifications Specifications

Environmental Rating

Temperature: 32 F to 104˚ F (0 C to 40˚ C). For indoor use only. Relative Humidity: < 90% non-condensing.

Fabric Standards / Certification Options Available

PVC Free, Fire Rated, Anti-microbial Properties, GREENGUARD Certified, RoHS Compliant, Cradle to Cradle Certified, Lead Free

Environmental Standards / Certifications

Lutron shading solutions and controls can contribute to achieving certifications such as LEED, WELL, and BREEAM.

Regulatory Approvals

cULus listed
FCC (USA)
IC (Canada)

Warranty

Eight Year Limited Warranty

General Documents

Installation & Tools

View the Spec Sheet

Find Installation Guide

Explore Residential Shades Brochure

Read the Warranty
